Probe

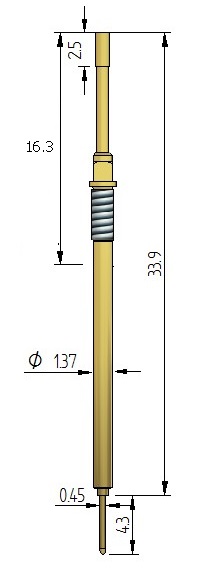

P207/G Probe Series
Screw in (threaded) switch probe. Top thread with easy replacement system.
Normally open. Switch travel is 4.0mm.
Product specification
| Mil | 100 |
| Centres | 2.54 mm |
| Full Travel | 6.30 mm |
| Working Travel | 5.00 mm |
| Current Resistance | 1.00 amps |
| Continuity Resistance | 50.00 mOhms |
| Product Series | P207/G |
| Application | Screw In Switch Probe |
| Solutions | Wire Harness Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
