Probe

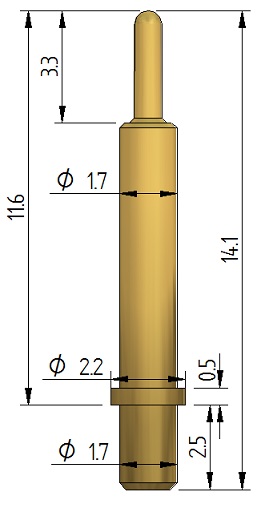

P967 Probe Series
Short travel battery contact probe series which is pressed into the PCB directly.
Ideal for small centres and short travel applications.
Product specification
| Mil | 106 |
| Centres | 2.70 mm |
| Full Travel | 3.00 mm |
| Working Travel | 1.50 mm |
| Current Resistance | 5.00 amps |
| Continuity Resistance | 30.00 mOhms |
| Application | Battery Contact |
| Solutions | Short Travel Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
