Probe

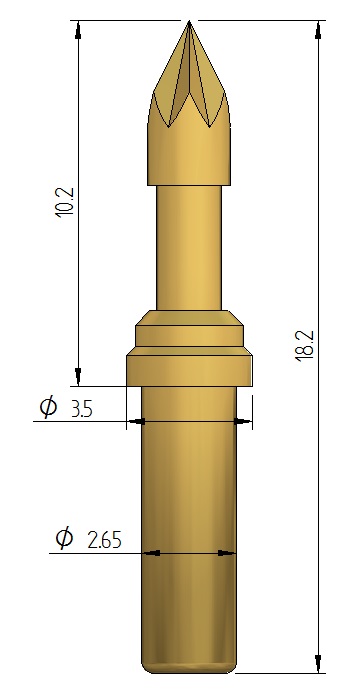

P940L Probe Series (long version)
Battery contact push fit probe series which is a longer version of P940 battery contact series with a star head style.
This probe is ideal for applications with limited space.
Product specification
| Mil | 160 |
| Centres | 4.00 mm |
| Full Travel | 3.50 mm |
| Working Travel | 2.80 mm |
| Current Resistance | 10.00 amps |
| Continuity Resistance | 10.00 mOhms |
| Application | Battery Contact |
| Solutions | Short Travel Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
