Probe

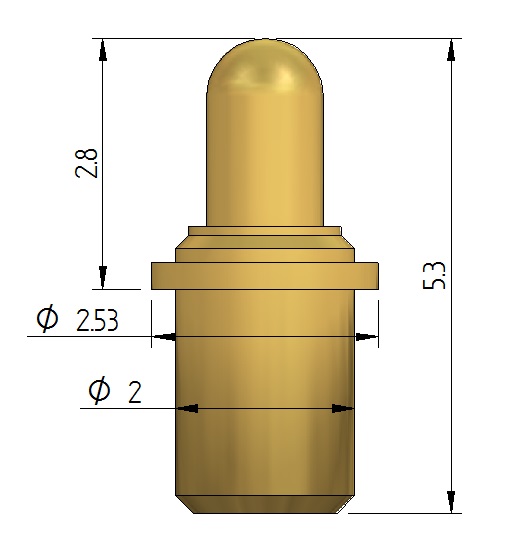

P900 Probe Series
Short travel, push fit battery contact probe available.
Different mounting heights can be realised with the R900 series of receptacles.
One of the smallest battery contact probes available.
For details of easy replacement of the probe - please contact us.
Product specification
| Mil | 118 |
| Centres | 3.00 mm |
| Full Travel | 1.20 mm |
| Working Travel | 1.00 mm |
| Current Resistance | 9.00 amps |
| Continuity Resistance | 15.00 mOhms |
| Application | Battery Contact |
| Solutions | Short Travel Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
