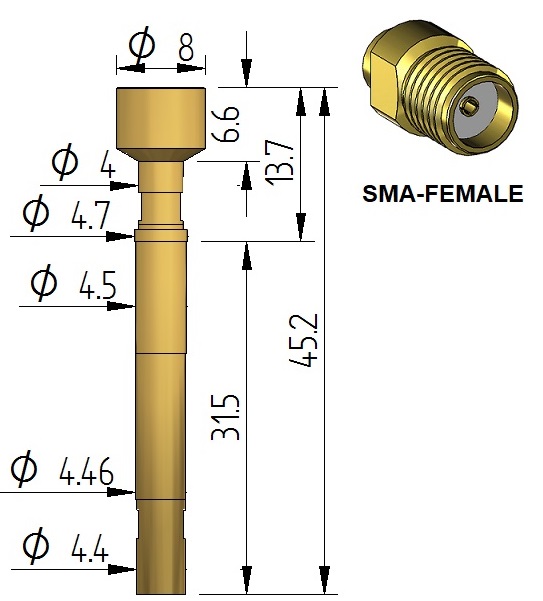

P8606 Probe Series (SMA Female)

High frequency, push fit coaxial test probe with a frequency of 6.0 GHz. Used to contact SMA Female connectors.

The probe is made up of a inner and outer conductor. Compatible receptacle is available.

Please view P8601 for a smaller height.

For a screw in (threaded) version, please see P8606/G series.

Request for quote

Product specification

Mil
236
Centres
6.00 mm
Full Travel
3.00 mm
Working Travel
2.00 mm
Current Resistance
3.00 amps
Continuity Resistance
50.00 mOhms
Product Series
P8606
Application
High Frequency
Kelvin/Coaxial
Solutions
RF Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.

Head Style:
Part NumberHead DiameterWorking Travel Spring ForceSpring PartHead StyleQuantity
P8606-E-4
1.80 mm
9.30 N
-4
Cone - E
P8606-E-3
1.80 mm
8.00 N
-3
Cone - E
P8606-E-2
1.80 mm
7.30 N
-2
Cone - E
P8606-E-1
1.80 mm
6.00 N
-1
Cone - E
P8606-E-5
1.80 mm
10.00 N
-5
Cone - E
P8606-E
1.80 mm
5.30 N
Cone - E
