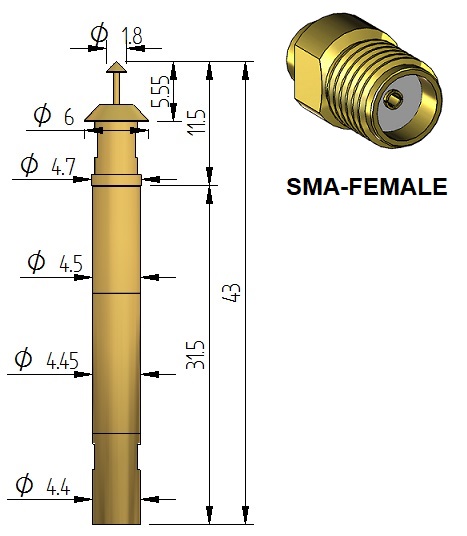

P8601 Probe Series (SMA Female)
High frequency, push fit coaxial test probe with a frequency of 8.0 GHz. Used to contact SMA Female connectors.
Suitable for radio frequency applications.
The probe is made up of a inner and outer conductor.
For a bigger prjection height, please see series P8606. Compatible receptacle is available.
Product specification
| Mil | 256 |
| Centres | 6.50 mm |
| Full Travel | 3.00 mm |
| Working Travel | 2.00 mm |
| Current Resistance | 3.00 amps |
| Continuity Resistance | 50.00 mOhms |
| Product Series | P8601 |
| Application | High Frequency Kelvin/Coaxial |
| Solutions | RF Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
