Probe

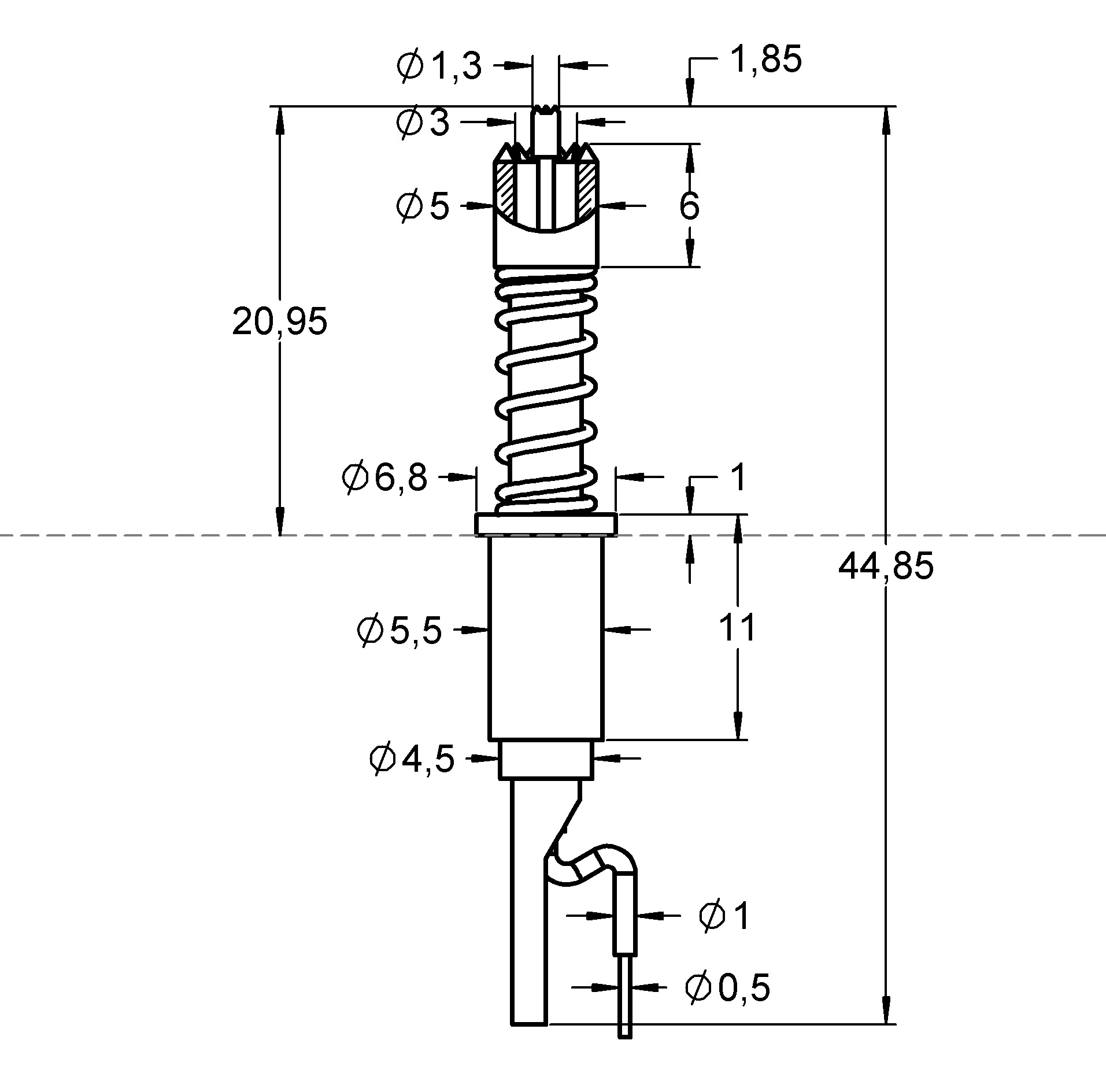

P840 Probe Series
Plug in Kelvin test probe, designed for high current applications.
A very strong spring pressure accompanies this pin.
Circular (B) contact has a current specification of 30 amps. The inner contact (A) has a current specification of 5 amps.
Product specification
| Mil | 275 |
| Centres | 7.00 mm |
| Full Travel | 6.40 mm |
| Working Travel | 1.90 mm |
| Current Resistance | 30.00 amps |
| Product Series | P840 |
| Application | High Current Kelvin/Coaxial |
| Solutions | Battery & High Current Testing RF Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
