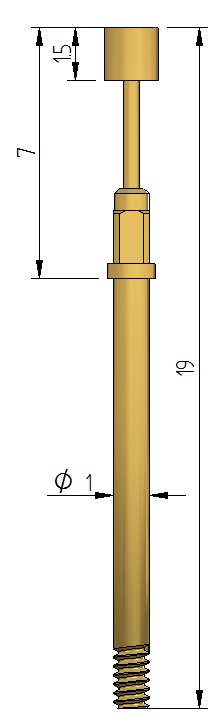

P740/G Probe Series

Screw in (threaded) test probe with a compact design.

Specifically designed for limited space within the automotive industry.

Mil	75
Centres	1.91 mm
Full Travel	3.00 mm
Working Travel	2.40 mm
Current Resistance	4.00 amps
Continuity Resistance	20.00 mOhms
Product Series	P740/G
Application	Fine Pitch Screw In
Solutions	Fine Pitch Testing Short Travel Testing Wire Harness Testing

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.

Part Number	Head Diameter	Working Travel Spring Force	Spring Part	Head Style
P740/G-F-1	1.50 mm	2.25 N	-1	Flat - F
P740/G-A-1	1.50 mm	2.25 N	-1	Concave - A
P740/G-B	0.45 mm	0.80 N		Spear - B
P740/G-B-1	0.45 mm	2.25 N	-1	Spear - B
P740/G-C	1.50 mm	0.80 N		Serrated - C
P740/G-C-1	1.50 mm	2.25 N	-1	Serrated - C
P740/G-D	0.65 mm	0.80 N		Dome - D
P740/G-D-1	0.65 mm	2.25 N	-1	Dome - D
P740/G-D1	0.50 mm	0.80 N		Headless Dome - D
P740/G-D1-1	0.50 mm	2.25 N	-1	Headless Dome - D
P740/G-D2	1.00 mm	0.80 N		Dome - D
P740/G-D2-1	1.00 mm	2.25 N	-1	Dome - D
P740/G-D3	0.40 mm	0.80 N		Reduced Dome - D
P740/G-D3-1	0.40 mm	2.25 N	-1	Reduced Dome - D
P740/G-F	1.50 mm	0.80 N		Flat - F
P740/G-A	1.50 mm	0.80 N		Concave - A
P740/G-F1	1.00 mm	0.80 N		Flat - F
P740/G-F1-1	1.00 mm	2.25 N	-1	Flat - F
P740/G-H	1.50 mm	0.80 N		Chisel - H
P740/G-H-1	1.50 mm	2.25 N	-1	Chisel - H
P740/G-Q	1.50 mm	0.80 N		4 Point Crown - Q
P740/G-Q-1	1.50 mm	2.25 N	-1	4 Point Crown - Q
