Probe

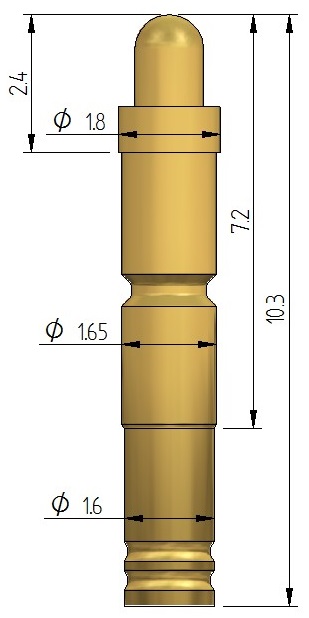

P699 Probe Series
Battery contact push fit test probe series for small centres.
This probe is ideal for applications with limited space.
Product specification
| Mil | 100 |
| Centres | 2.54 mm |
| Full Travel | 1.60 mm |
| Working Travel | 1.30 mm |
| Current Resistance | 3.00 amps |
| Continuity Resistance | 30.00 mOhms |
| Product Series | P699 |
| Application | Battery Contact |
| Solutions | Short Travel Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
