Probe

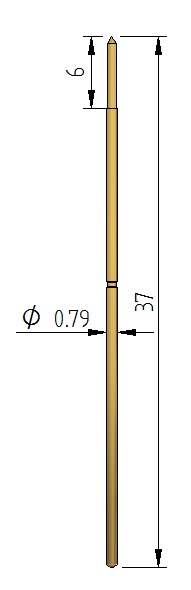

P68 Probe Series

ATE push fit test probes. The P68 series is the industry standard for most ATE fixtures.

The P68 is a long travel probe.

Request for quote
P68

Product specification
Mil
50
Centres
1.27 mm
Full Travel
4.00 mm
Working Travel
3.20 mm
Current Resistance
4.00 amps
Continuity Resistance
20.00 mOhms
Product Series
P68
Application
ICT/FCT
Solutions
PCB & ATE Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberHead DiameterWorking Travel Spring ForceSpring PartHead StyleQuantity
P68-L-1
0.60 mm
1.30 N
-1
Headless 4 Point Crown - L
P68-BT80-1
0.60 mm
1.30 N
-1
Dagger - BT80
P68-C-1
0.90 mm
1.30 N
-1
Serrated - C
P68-D1-1
0.60 mm
1.30 N
-1
Dome - D
P68-E-1
0.60 mm
1.30 N
-1
Headless Cone - E
P68-K-1
0.70 mm
1.30 N
-1
Star - K
P68-B-1
0.60 mm
1.30 N
-1
Spear - B
P68-L1-1
0.40 mm
1.30 N
-1
Headless 4 Point Crown - L
P68-Q-1
0.90 mm
1.30 N
-1
4 Point Crown - Q
