Probe
P671 Probe Series

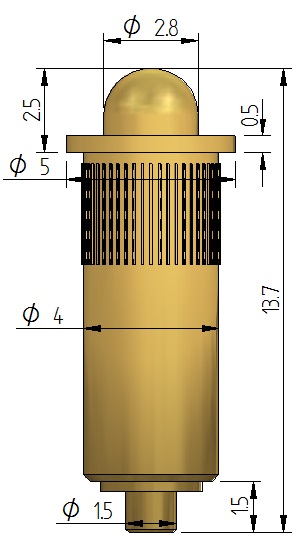

Short travel battery contact probe P671 with a pressed in feature.
*Part number P671-D is unplated whilst P671-D-1-Au is gold plated.
Product specification
| Mil | 216 |
| Centres | 5.50 mm |
| Full Travel | 2.00 mm |
| Working Travel | 1.50 mm |
| Current Resistance | 5.00 amps |
| Continuity Resistance | 20.00 mOhms |
| Product Series | P671 |
| Application | Battery Contact |
| Solutions | Short Travel Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
