Probe

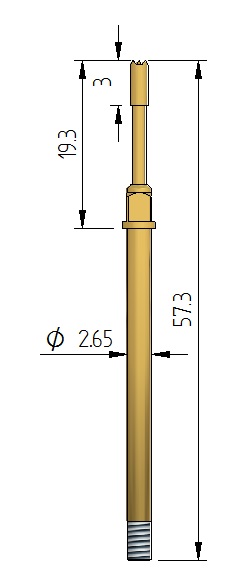

P62/G Probe Series
Long travel screw in (threaded) test probe.
Ideal for making contact deep inside a connector.
Compatible receptacle is also available.
Product specification
| Mil | 157 |
| Centres | 4.00 mm |
| Full Travel | 14.30 mm |
| Working Travel | 12.00 mm |
| Current Resistance | 10.00 amps |
| Continuity Resistance | 25.00 mOhms |
| Product Series | P62/G |
| Application | Screw In |
| Solutions | Wire Harness Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
