Probe

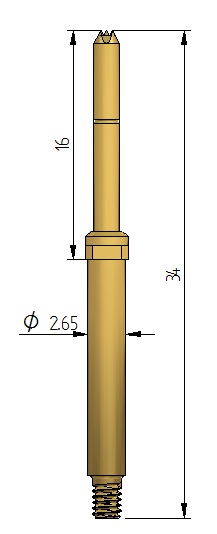

P61/G Threaded Probe Series
Screw in (threaded) ATE test probe which is suitable for heavy duty applications.
For a push fit version, please see series P61.
Product specification
| Mil | 160 |
| Centres | 4.00 mm |
| Full Travel | 7.00 mm |
| Working Travel | 5.60 mm |
| Current Resistance | 5.00 amps |
| Continuity Resistance | 35.00 mOhms |
| Product Series | P61/G |
| Application | Screw In |
| Solutions | Wire Harness Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
