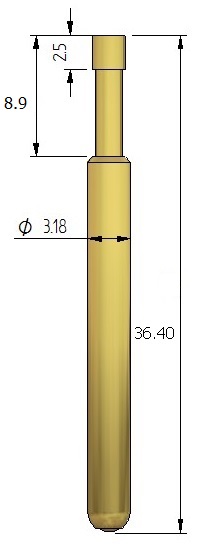

P55 Probe Series

Standard ATE push fit test probe which is suitable for heavy duty applications.

A varied choice of head styles and spring pressures are available.

For a high current version, please see HSP55 series.

A longer version is also available, please see series P55 Long Version.

Request for quote
P55

Product specification
Mil
177
Centres
4.50 mm
Full Travel
6.40 mm
Working Travel
5.10 mm
Current Resistance
8.00 amps
Continuity Resistance
20.00 mOhms
Product Series
P55
Application
ICT/FCT
Solutions
PCB & ATE Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberHead DiameterWorking Travel Spring ForceSpring PartHead StyleQuantity
P55-A-0
3.96 mm
2.25 N
-0
Concave - A
P55-A-1
3.96 mm
4.00 N
-1
Concave - A
P55-A1-0
2.36 mm
2.25 N
-0
Concave - A
P55-A1-1
2.36 mm
4.75 N
-1
Concave - A
P55-B-0
2.03 mm
2.25 N
-0
Spear - B
P55-B-1
2.03 mm
4.75 N
-1
Spear - B
P55-B1-0
2.80 mm
2.25 N
-0
Spear - B
P55-B1-1
2.80 mm
4.00 N
-1
Spear - B
P55-C-0
3.96 mm
2.25 N
-0
Serrated - C
P55-C-1
3.96 mm
4.75 N
-1
Serrated - C
P55-D-0
3.96 mm
2.25 N
-0
Dome - D
P55-D-1
3.96 mm
4.00 N
-1
Dome - D
P55-D1-0
2.03 mm
2.25 N
-0
Headless Dome - D
P55-D1-1
2.03 mm
4.75 N
-1
Headless Dome - D
P55-D2-1
2.80 mm
4.00 N
-1
Headless Dome - D
P55-E-0
3.96 mm
2.25 N
-0
Cone - E
P55-E-1
3.96 mm
4.00 N
-1
Cone - E
P55-F-0
3.96 mm
2.25 N
-0
Flat - F
P55-F-1
3.96 mm
4.00 N
-1
Flat - F
P55-F1-0
2.79 mm
2.25 N
-0
Headless Flat - F
P55-F1-1
2.79 mm
4.00 N
-1
Headless Flat - F
P55-K-1
2.79 mm
4.00 N
-1
Star - K
P55-L1-0
1.30 mm
2.25 N
-0
Headless 4 Point Crown - L
P55-L1-1
1.30 mm
4.75 N
-1
Headless 4 Point Crown - L
P55-Q2-0
3.96 mm
2.25 N
-0
4 Point Crown - Q
P55-Q2-1
3.96 mm
4.00 N
-1
4 Point Crown - Q
P55-H-0
3.96 mm
2.25 N
-0
Chisel - H
P55-H-1
3.96 mm
4.00 N
-1
Chisel - H
P55-B2-0
2.10 mm
2.00 N
Spear - B
P55-B2-1
2.10 mm
4.00 N
Spear - B
P55-L-0
2.10 mm
2.00 N
Headless 4 Point Crown - L
P55-L-1
2.10 mm
4.00 N
Headless 4 Point Crown - L
