Probe

P406L Probe Series

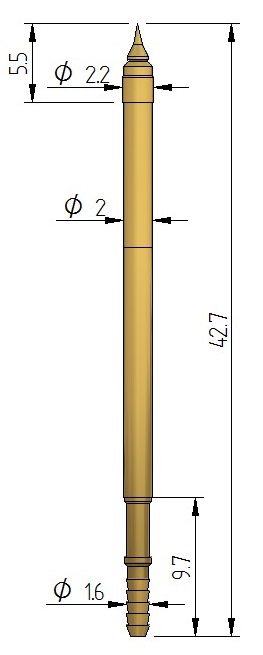

Push fit (threaded) pneumatic test probe. For the use in function test.

Contacting without adapter is possible.

Request for quote

Product specification

Mil
120
Centres
2.54 mm
Full Travel
10.00 mm
Working Travel
6.00 mm
Current Resistance
2.00 amps
Continuity Resistance
30.00 mOhms
Product Series
P406
Application
Pneumatic
Solutions
PCB & ATE Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.

Head Style:
Part NumberHead DiameterWorking Travel Spring ForceHead StyleQuantity
P406-BST-L
1.50 mm
0.60 N
Sharp Point - BST
P406-C-L
2.50 mm
0.60 N
Serrated - C
P406-L-L
1.30 mm
0.60 N
Headless 4 Point Crown - L
P406-BT80-L
1.00 mm
0.60 N
Dagger - BT80
