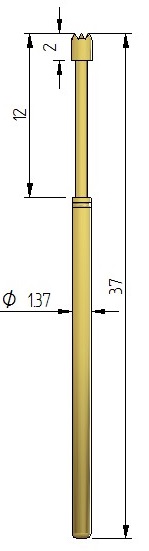

P34 Probe Series

Dual height fixture ATE push fit test probes.

Various head styles and spring pressures are available.

Request for quote
P34

Product specification
Mil
100
Centres
2.54 mm
Full Travel
10.00 mm
Working Travel
8.00 mm
Current Resistance
5.00 amps
Continuity Resistance
30.00 mOhms
Application
ICT/FCT
Solutions
PCB & ATE Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberHead DiameterWorking Travel Spring ForceSpring PartHead StyleQuantity
P34-A1-0
1.30 mm
1.50 N
-0
Concave - A
P34-A1-1
1.30 mm
2.25 N
-1
Concave - A
P34-A1-2
1.30 mm
3.00 N
-2
Concave - A
P34-B1-0
0.90 mm
1.50 N
-0
Spear - B
P34-B1-1
0.90 mm
2.25 N
-1
Spear - B
P34-B1-2
0.90 mm
3.00 N
-2
Spear - B
P34-C-0
1.50 mm
1.50 N
-0
Serrated - C
P34-C-1
1.50 mm
1.50 N
-1
Serrated - C
P34-C-2
1.50 mm
3.00 N
-2
Spear - B
P34-BT81-0
0.90 mm
1.50 N
-0
Dagger - BT80
P34-BT81-1
0.90 mm
2.25 N
-1
Dagger - BT80
P34-BT81-2
0.90 mm
3.00 N
-2
Dagger - BT80
P34-H-0
1.50 mm
1.50 N
-0
Chisel - H
P34-H-1
1.50 mm
2.25 N
-1
Chisel - H
P34-H-2
1.50 mm
3.00 N
-2
Chisel - H
P34-H2-0
2.50 mm
1.50 N
-0
Chisel - H
P34-H2-1
2.50 mm
2.25 N
-1
Chisel - H
P34-H2-2
2.50 mm
3.00 N
-2
Chisel - H
P34-K-0
1.70 mm
1.50 N
-0
Star - K
P34-K-1
1.70 mm
2.25 N
-1
Star - K
P34-K-2
1.70 mm
3.00 N
-2
Star - K
P34-L1-0
0.50 mm
1.50 N
-0
Headless 4 Point Crown - L
P34-L1-1
0.50 mm
2.25 N
-1
Headless 4 Point Crown - L
P34-L1-2
0.50 mm
3.00 N
-2
Headless 4 Point Crown - L
P34-L-0
1.00 mm
1.50 N
-0
Headless 4 Point Crown - L
P34-L-1
1.00 mm
1.50 N
-1
Headless 4 Point Crown - L
P34-L-2
1.00 mm
3.00 N
-2
Headless 4 Point Crown - L
P34-M1-0
1.30 mm
1.50 N
-0
Tulip - M1
P34-M1-1
1.30 mm
2.25 N
-1
Tulip - M1
P34-M1-2
1.30 mm
3.00 N
-2
Tulip - M1
P34-Q-0
1.50 mm
1.50 N
-0
4 Point Crown - Q
P34-Q-1
1.50 mm
2.25 N
-1
4 Point Crown - Q
P34-Q-2
1.50 mm
3.00 N
-2
4 Point Crown - Q
