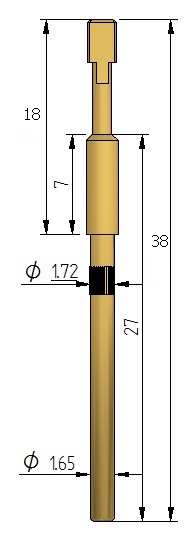

P307 Probe Series (long version)

A longer version of the standard P307 probe. Twist proof plug in test probe.

The twist proof function is realised by a specific plunger guiding within the receptacle.

Available with bladed head styles.

For a standard length, please see probe P307. Please refer to our product guide for bladed head styles to understand our measurements given.

Request for quote
P307L

Product specification
Mil
100
Centres
2.54 mm
Full Travel
5.00 mm
Working Travel
4.00 mm
Current Resistance
5.00 amps
Continuity Resistance
30.00 mOhms
Product Series
P307 Long Version
Application
Twist Proof
Solutions
Wire Harness Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberHead DiameterWorking Travel Spring ForceSpring PartHead StyleHead LengthQuantity
P307L-Y1-3
2.00 mm
5.00 N
-3
Blade 7
4.50
P307L-Y1-2
2.00 mm
3.00 N
-2
Blade 7
4.50
P307L-Y1-1
2.00 mm
1.50 N
-1
Blade 7
4.50
P307L-Y4-3
2.00 mm
5.00 N
-3
Blade 1
4.50
P307L-Y4-2
2.00 mm
3.00 N
-2
Blade 1
4.50
P307L-Y4-1
2.00 mm
1.50 N
-1
Blade 1
4.50
P307L-Y3-1
1.50 mm
1.50 N
-1
Blade 1
6.00
P307L-Y2-3
2.00 mm
5.00 N
-3
Blade 1
6.00
P307L-Y2-2
2.00 mm
3.00 N
-2
Blade 1
6.00
P307L-Y2-1
2.00 mm
1.50 N
-1
Blade 1
6.00
P307L-Y12-3
1.80 mm
5.00 N
-3
Blade 3
4.50
P307L-Y12-2
1.80 mm
3.00 N
-2
Blade 3
4.50
P307L-Y12-1
1.80 mm
1.50 N
-1
Blade 3
4.50
P307L-Y-3
2.00 mm
5.00 N
-3
Blade 7
4.50
P307L-Y-2
2.00 mm
3.00 N
-2
Blade 7
4.50
P307L-Y-1
2.00 mm
1.50 N
-1
Blade 7
4.50
