Probe
P275 Probe Series

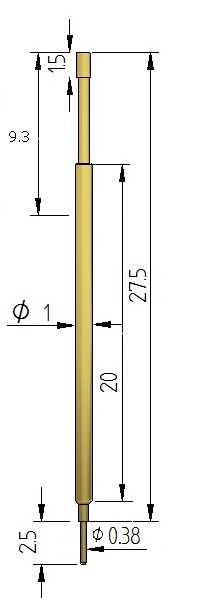

Plug in switch probe with standard travel for small centres. Normally open. Switch travel is 2.6mm.
Compatible receptacle is also available.
Product specification
| Mil | 75 |
| Centres | 1.91 mm |
| Full Travel | 5.00 mm |
| Working Travel | 4.00 mm |
| Current Resistance | 1.00 amps |
| Continuity Resistance | 20.00 mOhms |
| Product Series | P275 |
| Application | Switch Probe |
| Solutions | Wire Harness Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
