P24/7 Probe Series (7mm Collar)

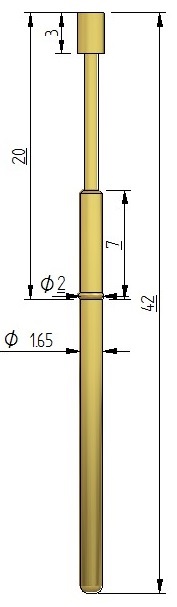

Standard automotive ATE push fit test probe with a 7mm collar extension. Overall length is now 42.0mm.

Further extensions available - 10mm, 8mm or 5mm.

Request for quote

Product specification

Mil
100
Centres
2.54 mm
Full Travel
10.00 mm
Working Travel
8.00 mm
Current Resistance
3.00 amps
Continuity Resistance
30.00 mOhms
Product Series
P24/7
Application
ICT/FCT
Solutions
PCB & ATE Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.

Head Style:
Part NumberHead DiameterWorking Travel Spring ForceSpring PartHead StyleQuantity
P24/7-D1-3
1.30 mm
3.00 N
-3
Headless Dome - D
P24/7-D1-2
1.30 mm
2.50 N
-2
Headless Dome - D
P24/7-D1-1
1.30 mm
1.50 N
-1
Headless Dome - D
P24/7-F-3
2.00 mm
3.00 N
-3
Flat - F
P24/7-F-2
2.00 mm
2.50 N
-2
Flat - F
P24/7-F-1
2.00 mm
1.50 N
-1
Flat - F
P24/7-L-3
1.00 mm
3.00 N
-3
Headless 4 Point Crown - L
P24/7-L-2
1.00 mm
2.50 N
-2
Headless 4 Point Crown - L
P24/7-L-1
1.00 mm
1.50 N
-1
Headless 4 Point Crown - L
P24/7-Q1-3
2.00 mm
3.00 N
-3
4 Point Crown - Q
P24/7-Q1-2
2.00 mm
2.50 N
-2
4 Point Crown - Q
P24/7-Q1-1
2.00 mm
1.50 N
-1
4 Point Crown - Q
P24/7-Q-3
1.30 mm
3.00 N
-3
4 Point Crown - Q
P24/7-Q-2
1.30 mm
2.50 N
-2
4 Point Crown - Q
P24/7-Q-1
1.30 mm
1.50 N
-1
4 Point Crown - Q
P24/7-M1-3
2.00 mm
3.00 N
-3
Tulip - M1
P24/7-M1-2
2.00 mm
2.50 N
-2
Tulip - M1
P24/7-M1-1
2.00 mm
1.50 N
-1
Tulip - M1
P24/7-M-3
1.50 mm
3.00 N
-3
Tulip - M1
P24/7-M-2
1.50 mm
2.50 N
-2
Tulip - M1
P24/7-M-1
1.50 mm
1.50 N
-1
Tulip - M1
P24/7-K-3
2.00 mm
3.00 N
-3
Star - K
P24/7-K-2
2.00 mm
2.50 N
-2
Star - K
P24/7-K-1
2.00 mm
1.50 N
-1
Star - K
P24/7-H-3
1.30 mm
3.00 N
-3
Chisel - H
P24/7-H-2
1.30 mm
2.50 N
-2
Chisel - H
P24/7-H-1
1.30 mm
1.50 N
-1
Chisel - H
P24/7-D-3
1.00 mm
3.00 N
-3
Headless Dome - D
P24/7-D-2
1.00 mm
2.50 N
-2
Headless Dome - D
P24/7-D-1
1.00 mm
1.50 N
-1
Headless Dome - D
P24/7-C1-3
2.00 mm
3.00 N
-3
Serrated - C
P24/7-C1-2
2.00 mm
2.50 N
-2
Serrated - C
P24/7-C1-1
2.00 mm
1.50 N
-1
Serrated - C
P24/7-C-3
1.30 mm
3.00 N
-3
Serrated - C
P24/7-C-2
1.30 mm
2.50 N
-2
Serrated - C
P24/7-C-1
1.30 mm
1.50 N
-1
Serrated - C
P24/7-BT80-3
1.00 mm
3.00 N
-3
Dagger - BT80
P24/7-BT80-2
1.00 mm
2.50 N
-2
Dagger - BT80
P24/7-BT80-1
1.00 mm
1.50 N
-1
Dagger - BT80
P24/7-BST-3
0.80 mm
3.00 N
-3
Sharp Point - BST
P24/7-BST-2
0.80 mm
2.50 N
-2
Sharp Point - BST
P24/7-BST-1
0.80 mm
1.50 N
-1
Sharp Point - BST
P24/7-B-3
1.00 mm
3.00 N
-3
Spear - B
P24/7-B-2
1.00 mm
2.50 N
-2
Spear - B
P24/7-B-1
1.00 mm
1.50 N
-1
Spear - B
P24/7-A1-3
2.00 mm
3.00 N
-3
Concave - A
P24/7-A1-2
2.00 mm
2.50 N
-2
Concave - A
P24/7-A1-1
2.00 mm
1.50 N
-1
Concave - A
P24/7-A-3
1.80 mm
3.00 N
-3
Concave - A
P24/7-A-2
1.80 mm
2.50 N
-2
Concave - A
P24/7-A-1
1.80 mm
1.50 N
-1
Concave - A
P24/7-Z-2
1.80 mm
2.50 N
-2
8 Point Crown - Z
P24/7-Z-1
1.80 mm
1.50 N
-1
8 Point Crown - Z
P24/7-Z-3
1.80 mm
3.00 N
-3
8 Point Crown - Z
