Probe

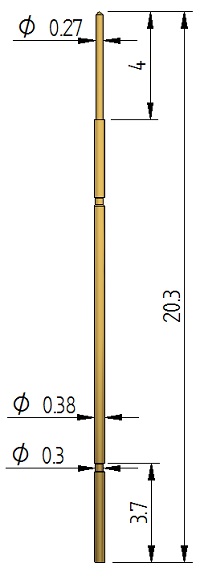

P239 Probe Series
Fine pitch probe series P239 with connecting element.
Please see R239 for the suitable pre-wired connecting element.
Product specification
| Mil | 20 |
| Centres | 0.50 mm |
| Full Travel | 2.50 mm |
| Working Travel | 2.00 mm |
| Current Resistance | 1.00 amps |
| Continuity Resistance | 350.00 mOhms |
| Application | Fine Pitch |
| Solutions | Fine Pitch Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
