Probe

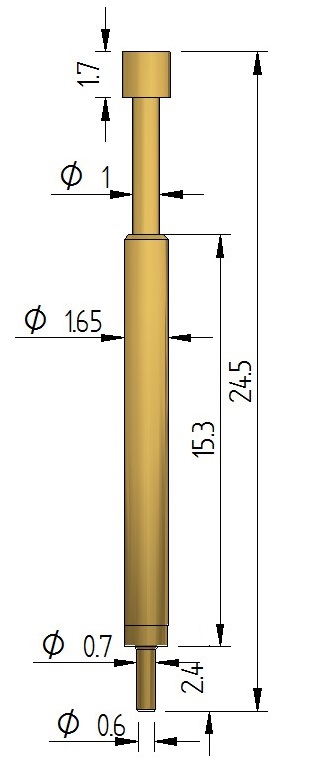

P221 Probe Series

Push fit switch test probe. A standard version of the P221/G threaded series. Switch travel is 2.6mm.

Easy replacement without soldering and a max. temperature of 300c.

Request for quote
P221

Product specification
Mil
100
Centres
2.54 mm
Full Travel
5.00 mm
Working Travel
4.00 mm
Current Resistance
3.00 amps
Continuity Resistance
20.00 mOhms
Product Series
P221
Application
Switch Probe
Solutions
Wire Harness Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberHead DiameterWorking Travel Spring ForceHead StyleQuantity
P221-C-1
1.80 mm
1.35 N
Serrated - C
P221-C-2
1.80 mm
2.00 N
Serrated - C
P221-C-3
1.80 mm
2.50 N
Serrated - C
P221-D1-1
1.00 mm
1.35 N
Headless Dome - D
P221-D1-2
1.00 mm
2.00 N
Headless Dome - D
P221-D1-3
1.00 mm
2.50 N
Headless Dome - D
P221-F1-1
1.00 mm
1.35 N
Headless Flat - F
P221-F1-2
1.00 mm
2.00 N
Headless Flat - F
P221-F1-3
1.00 mm
2.50 N
Headless Flat - F
P221-F1-POM-1
1.80 mm
1.35 N
Flat Insulated - F-POM
P221-F1-POM-2
1.80 mm
2.00 N
Flat Insulated - F-POM
P221-F1-POM-3
1.80 mm
2.50 N
Flat Insulated - F-POM
P221-F1-T-1
2.00 mm
1.35 N
Insulated Metal Cap - F1-T
P221-F1-T-2
2.00 mm
2.00 N
Insulated Metal Cap - F1-T
P221-F1-T-3
2.00 mm
2.50 N
Insulated Metal Cap - F1-T
