P21/5 Probe Series (5mm Collar)

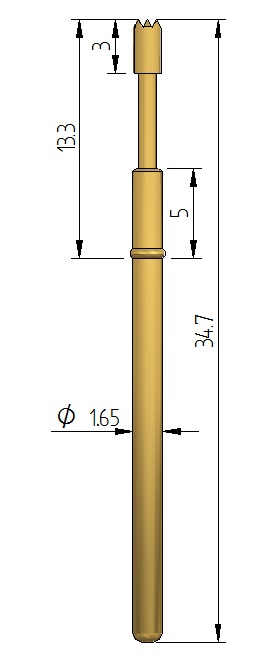

Standard automotive ATE push fit test probe with a 5mm collar extension than standard series P21.

Overall length is now 34.7mm. Further extensions are available on request.

Request for quote
P21

Product specification
Mil
100
Centres
2.54 mm
Full Travel
5.30 mm
Working Travel
4.00 mm
Current Resistance
5.00 amps
Continuity Resistance
25.00 mOhms
Product Series
P21/5
Application
ICT/FCT
Solutions
PCB & ATE Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberHead DiameterWorking Travel Spring ForceSpring PartHead StyleQuantity
P21/5-C1-1
1.80 mm
1.50 N
-1
Serrated - C
P21/5-C-2
1.30 mm
3.00 N
-2
Serrated - C
P21/5-C-2X
1.30 mm
2.25 N
-2X
Serrated - C
P21/5-C-1
1.30 mm
1.50 N
-1
Serrated - C
P21/5-BST-1
0.80 mm
1.50 N
-1
Sharp Point - BST
P21/5-B2-1
0.80 mm
1.50 N
-1
Spear - B
P21/5-B1-2
1.00 mm
3.00 N
-2
Spear - B
P21/5-B1-2X
1.00 mm
2.25 N
-2X
Spear - B
P21/5-B1-1
1.00 mm
1.50 N
-1
Spear - B
P21/5-B-2
1.30 mm
3.00 N
-2
Spear - B
P21/5-B-1
1.30 mm
1.50 N
-1
Spear - B
P21/5-A2-2
2.50 mm
3.00 N
-2
Concave - A
P21/5-A2-1
2.50 mm
1.50 N
-1
Concave - A
P21/5-A1-2
1.80 mm
3.00 N
-2
Concave - A
P21/5-A1-1
1.80 mm
1.50 N
-1
Concave - A
P21/5-A-2
2.00 mm
3.00 N
-2
Concave - A
P21/5-A-1
2.00 mm
1.50 N
-1
Concave - A
P21/5-K2-2X
1.75 mm
2.25 N
-2X
Star - K
P21/5-K2-1
1.75 mm
1.50 N
-1
Star - K
P21/5-H-2X
1.80 mm
2.25 N
-2X
Chisel - H
P21/5-H-2
1.80 mm
3.00 N
-2
Chisel - H
P21/5-H-1
1.80 mm
1.50 N
-1
Chisel - H
P21/5-F3-2
1.50 mm
3.00 N
-2
Flat - F
P21/5-F3-1
1.50 mm
1.50 N
-1
Flat - F
P21/5-F3-2X
1.50 mm
2.25 N
-2X
Flat - F
P21/5-H1-1
2.00 mm
1.50 N
-1
Chisel - H
P21/5-H1-2X
2.00 mm
2.25 N
-2X
Chisel - H
P21/5-K1-2X
1.15 mm
2.25 N
-2X
Star - K
P21/5-K1-2
1.15 mm
3.00 N
-2
Star - K
P21/5-K1-1
1.15 mm
1.50 N
-1
Star - K
P21/5-K-2
2.00 mm
3.00 N
-2
Star - K
P21/5-H1-2
2.00 mm
3.00 N
-2
Chisel - H
P21/5-K-1
2.00 mm
1.50 N
-1
Star - K
P21/5-K-2X
2.00 mm
2.25 N
-2X
Star - K
P21/5-F2-2
1.00 mm
3.00 N
-2
Headless Flat - F
P21/5-Q1-2X
1.00 mm
2.25 N
-2X
4 Point Crown - Q
P21/5-Q-2
1.30 mm
3.00 N
-2
4 Point Crown - Q
P21/5-Q-2X
1.30 mm
2.25 N
-2X
4 Point Crown - Q
P21/5-Q1-1
1.00 mm
1.50 N
-1
4 Point Crown - Q
P21/5-M-1
1.80 mm
1.50 N
-1
Tulip - M1
P21/5-K2-2
1.75 mm
3.00 N
-2
Star - K
P21/5-M-2X
1.80 mm
2.25 N
-2X
Tulip - M1
P21/5-Q-1
1.30 mm
1.50 N
-1
4 Point Crown - Q
P21/5-M-2
1.80 mm
3.00 N
-2
Tulip - M1
P21/5-Q2-1
1.80 mm
1.50 N
-1
4 Point Crown - Q
P21/5-Q1-2
1.00 mm
3.00 N
-2
4 Point Crown - Q
P21/5-Q2-2X
1.80 mm
2.25 N
-2X
4 Point Crown - Q
P21/5-Q2-2
1.80 mm
3.00 N
-2
4 Point Crown - Q
P21/5-Q3-2
2.00 mm
3.00 N
-2
4 Point Crown - Q
P21/5-Q3-2X
2.00 mm
2.25 N
-2X
4 Point Crown - Q
P21/5-Q3-1
2.00 mm
1.50 N
-1
4 Point Crown - Q
P21/5-D3-2
1.00 mm
3.00 N
-2
Headless Dome - D
P21/5-D3-2X
1.00 mm
2.25 N
-2X
Headless Dome - D
P21/5-C4-1
3.00 mm
1.50 N
-1
Serrated - C
P21/5-C4-2X
3.00 mm
2.25 N
-2X
Serrated - C
P21/5-C2-2
1.50 mm
3.00 N
-2
Serrated - C
P21/5-C2-2X
1.50 mm
2.25 N
-2X
Serrated - C
P21/5-C1-2
1.80 mm
3.00 N
-2
Serrated - C
P21/5-C2-1
1.50 mm
1.50 N
-1
Serrated - C
P21/5-C4-2
3.00 mm
3.00 N
-2
Serrated - C
P21/5-D-1
1.30 mm
1.30 N
-1
Dome - D
P21/5-D2-2
1.80 mm
3.00 N
-2
Dome - D
P21/5-D3-1
1.00 mm
1.50 N
-1
Headless Dome - D
P21/5-D2-2X
1.80 mm
2.25 N
-2X
Dome - D
P21/5-D2-1
1.80 mm
1.50 N
-1
Dome - D
P21/5-D1-1
0.65 mm
1.50 N
-1
Reduced Dome - D
P21/5-D1-2X
0.65 mm
2.25 N
-2X
Reduced Dome - D
P21/5-D1-2
0.65 mm
3.00 N
-2
Reduced Dome - D
P21/5-C1-2X
1.80 mm
2.25 N
-2X
Serrated - C
P21/5-F-1
2.00 mm
1.50 N
-1
Flat - F
P21/5-DS1-2X
0.65 mm
2.25 N
-2X
Reduced Dome - D
P21/5-DS1-1
0.65 mm
1.50 N
-1
Reduced Dome - D
P21/5-DS1-2
0.65 mm
3.00 N
-2
Reduced Dome - D
P21/5-D4-2X
0.80 mm
2.25 N
-2X
Headless Dome - D
P21/5-D4-1
0.80 mm
1.50 N
-1
Headless Dome - D
P21/5-D4-2
0.80 mm
3.00 N
-2
Headless Dome - D
P21/5-D5-2
2.00 mm
3.00 N
-2
Dome - D
P21/5-D5-1
2.00 mm
1.50 N
-1
Dome - D
P21/5-F-2
2.00 mm
3.00 N
-2
Flat - F
P21/5-F-2X
2.00 mm
2.25 N
-2X
Flat - F
P21/5-F1-1
0.65 mm
1.50 N
-1
Reduced Flat - F
P21/5-F1-2X
0.65 mm
2.25 N
-2X
Reduced Flat - F
P21/5-F2-2X
1.00 mm
2.25 N
-2X
Headless Flat - F
P21/5-F2-1
1.00 mm
1.50 N
-1
Headless Flat - F
P21/5-F1-2
0.65 mm
3.00 N
-2
Reduced Flat - F
