Probe

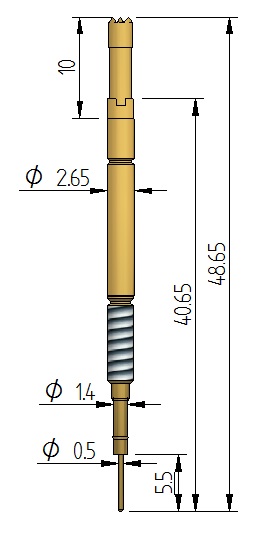

P201/GV Probe Series
A screw in (threaded) switch test probe series which benefits from a insulated switching circuit.
A standard and a combi receptacle can be used.
The height of the probe is also adjustable via the thread.
Easy replacement is achievable with receptacle R201/GV-KB.
Product specification
| Mil | 138 |
| Centres | 3.50 mm |
| Full Travel | 5.00 mm |
| Working Travel | 4.00 mm |
| Current Resistance | 10.00 amps |
| Continuity Resistance | 25.00 mOhms |
| Product Series | P201/GV |
| Application | Screw In Switch Probe |
| Solutions | Wire Harness Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
