Probe

P201/GI Probe Series

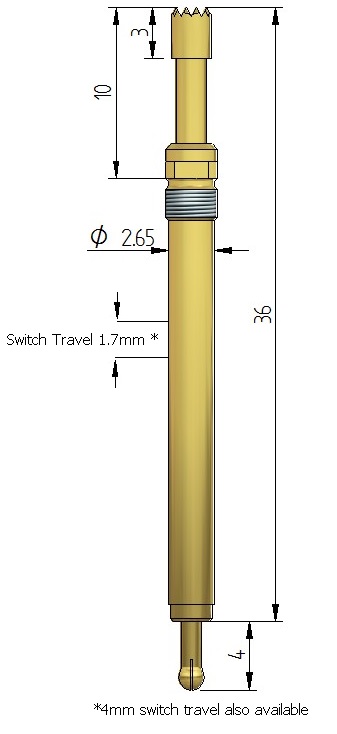

Screw in (threaded) switch probe. Top thread with easy replacement series. Normally open.

Standard switch travel is 1.7mm but a 4.0mm switch travel is available on request.

Variable extension height of 5.0mm is also available on request.

Request for quote
P201GI

Product specification
Mil
160
Centres
4.00 mm
Full Travel
5.00 mm
Working Travel
4.00 mm
Current Resistance
5.00 amps
Continuity Resistance
15.00 mOhms
Product Series
P201/GI
Application
Screw In
Switch Probe
Solutions
Wire Harness Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberHead DiameterWorking Travel Spring ForceSpring PartHead StyleQuantity
P201/GI-C4-0
4.00 mm
2.30 N
-0
Serrated - C
P201/GI-C4-3
4.00 mm
13.00 N
-3
Serrated - C
P201/GI-C6-1X
3.00 mm
4.00 N
-1X
Serrated - C
P201/GI-C6-0
3.00 mm
2.30 N
-0
Serrated - C
P201/GI-A-0
2.30 mm
2.30 N
-0
Concave - A
P201/GI-A-1X
2.30 mm
4.00 N
-1X
Concave - A
P201/GI-A-1
2.30 mm
7.00 N
-1
Concave - A
P201/GI-A-00
2.30 mm
1.25 N
-00
Concave - A
P201/GI-D6-3
1.00 mm
13.00 N
-3
Reduced Dome - D
P201/GI-C6-00
3.00 mm
1.25 N
-00
Serrated - C
P201/GI-F-0
2.30 mm
2.30 N
-0
Flat - F
P201/GI-F-00
2.30 mm
1.25 N
-00
Flat - F
P201/GI-F4-POM-0
4.00 mm
2.30 N
-0
Flat Insulated - F-POM
P201/GI-F1-POM-1
3.00 mm
7.00 N
-1
Flat Insulated - F-POM
P201/GI-F2-POM-1X
5.00 mm
4.00 N
-1X
Flat Insulated - F-POM
P201/GI-H-00
2.60 mm
1.25 N
-00
Chisel - H
P201/GI-F2-POM-1
5.00 mm
7.00 N
-1
Flat Insulated - F-POM
P201/GI-F2-POM-2
5.00 mm
9.00 N
-2
Flat Insulated - F-POM
P201/GI-F1-POM-0
3.00 mm
2.30 N
-0
Flat Insulated - F-POM
P201/GI-F1-POM-1X
3.00 mm
4.00 N
-1X
Flat Insulated - F-POM
P201/GI-F2-POM-3
5.00 mm
13.00 N
-3
Flat Insulated - F-POM
P201/GI-H-0
2.60 mm
2.30 N
-0
Chisel - H
P201/GI-H-3
2.60 mm
13.00 N
-3
Chisel - H
P201/GI-F4-POM-00
4.00 mm
1.25 N
-00
Flat Insulated - F-POM
P201/GI-F1-POM-3
3.00 mm
13.00 N
-3
Flat Insulated - F-POM
P201/GI-F1-POM-2
3.00 mm
9.00 N
-2
Flat Insulated - F-POM
P201/GI-F2-POM-00
5.00 mm
1.25 N
-00
Flat Insulated - F-POM
P201/GI-F2-POM-0
5.00 mm
2.30 N
-0
Flat Insulated - F-POM
P201/GI-H-2
2.60 mm
9.00 N
-2
Chisel - H
P201/GI-H-1
2.60 mm
7.00 N
-1
Chisel - H
P201/GI-H-1X
2.60 mm
4.00 N
-1X
Chisel - H
P201/GI-F3-2
3.00 mm
9.00 N
-2
Flat - F
P201/GI-F3-3
3.00 mm
13.00 N
-3
Flat - F
P201/GI-D6-0
1.00 mm
2.30 N
-0
Reduced Dome - D
P201/GI-D6-2
1.00 mm
9.00 N
-2
Reduced Dome - D
P201/GI-D6-00
1.00 mm
1.25 N
-00
Reduced Dome - D
P201/GI-F4-POM-2
4.00 mm
9.00 N
-2
Flat Insulated - F-POM
P201/GI-F4-POM-1
4.00 mm
7.00 N
-1
Flat Insulated - F-POM
P201/GI-F4-POM-3
4.00 mm
13.00 N
-3
Flat Insulated - F-POM
P201/GI-F4-POM-1X
4.00 mm
4.00 N
-1X
Flat Insulated - F-POM
P201/GI-F-1
2.30 mm
7.00 N
-1
Flat - F
P201/GI-D6-1X
1.00 mm
4.00 N
-1X
Reduced Dome - D
P201/GI-D6-1
1.00 mm
7.00 N
-1
Reduced Dome - D
P201/GI-F3-1X
3.00 mm
4.00 N
-1X
Flat - F
P201/GI-F3-1
3.00 mm
7.00 N
-1
Flat - F
P201/GI-F0-00
1.80 mm
1.25 N
-00
Headless Flat - F
P201/GI-F-2
2.30 mm
9.00 N
-2
Flat - F
P201/GI-F-3
2.30 mm
13.00 N
-3
Flat - F
P201/GI-F-1X
2.30 mm
4.00 N
-1X
Flat - F
P201/GI-F3-0
3.00 mm
2.30 N
-0
Flat - F
P201/GI-F3-00
3.00 mm
1.25 N
-00
Flat - F
P201/GI-F-POM-00
2.30 mm
1.25 N
-00
Flat Insulated - F-POM
P201/GI-C4-00
4.00 mm
1.25 N
-00
Serrated - C
P201/GI-C2-1
1.80 mm
7.00 N
-1
Headless Serrated - C
P201/GI-C2-1X
1.80 mm
4.00 N
-1X
Headless Serrated - C
P201/GI-C2-2
1.80 mm
9.00 N
-2
Headless Serrated - C
P201/GI-C2-0
1.80 mm
2.30 N
-0
Headless Serrated - C
P201/GI-C1-2
1.00 mm
9.00 N
-2
Serrated With Collar - C
P201/GI-C1-1
1.00 mm
7.00 N
-1
Serrated With Collar - C
P201/GI-C2-00
1.80 mm
1.25 N
-00
Headless Serrated - C
P201/GI-C1-1X
1.00 mm
4.00 N
-1X
Serrated With Collar - C
P201/GI-C1-0
1.00 mm
2.30 N
-0
Serrated With Collar - C
P201/GI-C1-00
1.00 mm
1.25 N
-00
Serrated With Collar - C
P201/GI-C-3
2.30 mm
13.00 N
-3
Serrated - C
P201/GI-C2-3
1.80 mm
13.00 N
-3
Headless Serrated - C
P201/GI-C-2
2.30 mm
9.00 N
-2
Serrated - C
P201/GI-C-1
2.30 mm
7.00 N
-1
Serrated - C
P201/GI-C-1X
2.30 mm
4.00 N
-1X
Serrated - C
P201/GI-C-0
2.30 mm
2.30 N
-0
Serrated - C
P201/GI-C-00
2.30 mm
1.25 N
-00
Serrated - C
P201/GI-C1-3
1.00 mm
13.00 N
-3
Serrated With Collar - C
P201/GI-A-3
2.30 mm
13.00 N
-3
Concave - A
P201/GI-F0-0
1.80 mm
2.30 N
-0
Headless Flat - F
P201/GI-F0-1X
1.80 mm
4.00 N
-1X
Headless Flat - F
P201/GI-F-POM-1
2.30 mm
7.00 N
-1
Flat Insulated - F-POM
P201/GI-F0-1
1.80 mm
7.00 N
-1
Headless Flat - F
P201/GI-F-POM-0
2.30 mm
2.30 N
-0
Flat Insulated - F-POM
P201/GI-F0-2
1.80 mm
9.00 N
-2
Headless Flat - F
P201/GI-F0-3
1.80 mm
13.00 N
-3
Headless Flat - F
P201/GI-F-POM-1X
2.30 mm
4.00 N
-1X
Flat Insulated - F-POM
P201/GI-F-POM-2
2.30 mm
9.00 N
-2
Flat Insulated - F-POM
P201/GI-F-POM-3
2.30 mm
13.00 N
-3
Flat Insulated - F-POM
P201/GI-C6-2
3.00 mm
9.00 N
-2
Serrated - C
P201/GI-C6-3
3.00 mm
13.00 N
-3
Serrated - C
P201/GI-A-2
2.30 mm
9.00 N
-2
Concave - A
P201/GI-C6-1
3.00 mm
7.00 N
-1
Serrated - C
P201/GI-C4-1
4.00 mm
7.00 N
-1
Serrated - C
P201/GI-F1-POM-00
3.00 mm
1.25 N
-00
Flat Insulated - F-POM
P201/GI-C4-1X
4.00 mm
4.00 N
-1X
Serrated - C
P201/GI-C4-2
4.00 mm
9.00 N
-2
Serrated - C
