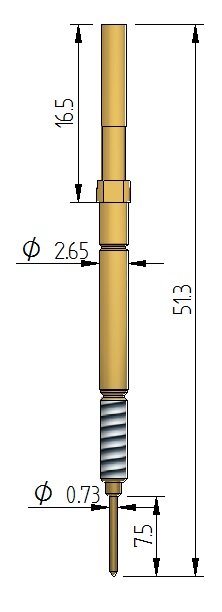

P201/G Probe Series (long version)

Screw in (threaded) switch probe with a projection height of 16.7mm.

Bottom Thread with easy replacement system. Normally Open.

Standard switch travel is 1.7mm.

Please see P201/G series for the standard measurements and more head styles.

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.

Head Diameter:

Working Travel Spring Force:

Part Number	Head Diameter	Working Travel Spring Force	Spring Part	Head Style
P201/G-FL2-SPOM-2	5.00 mm	3.50 N	-2	Insulated Metal Ring - SPOM
P201/G-FL1-SPOM-2	3.00 mm	3.50 N	-2	Insulated Metal Ring - SPOM
P201/G-FL5-POM-2	3.50 mm	3.50 N	-2	Flat Insulated - F-POM
P201/G-FL1-POM-2	3.00 mm	3.50 N	-2	Flat Insulated - F-POM
P201/G-FL-POM-2	2.30 mm	3.50 N	-2	Flat Insulated - F-POM
P201/G-FL4-2	4.00 mm	3.50 N	-2	Flat - F
P201/G-FL5-4X	3.50 mm	9.00 N	-4X	Flat - F
P201/G-FL5-1	3.50 mm	2.30 N	-1	Flat - F
P201/G-FL1-4X	3.00 mm	9.00 N	-4X	Flat - F
P201/G-FL1-2	3.00 mm	3.50 N	-2	Flat - F
P201/G-FL1-1	3.00 mm	2.30 N	-1	Flat - F
P201/G-FL1-0	3.00 mm	1.25 N	-0	Flat - F
P201/G-FL1-00	3.00 mm	0.70 N	-00	Flat - F
P201/G-FL3-4X	1.00 mm	9.00 N	-4X	Flat - F
P201/G-CL-4X	2.30 mm	9.00 N	-4X	Serrated - C
P201/G-CL-2	2.30 mm	3.50 N	-2	Serrated - C
P201/G-CL-1	2.30 mm	2.30 N	-1	Serrated - C
P201/G-CL-0	2.30 mm	1.25 N	-0	Serrated - C
P201/G-FL3-1	1.00 mm	2.30 N	-1	Flat - F
P201/G-CL6-2	3.00 mm	3.50 N	-2	Serrated - C
P201/G-CL2-5X	1.80 mm	12.50 N	-5X	Serrated - C
P201/G-CL2-4X	1.80 mm	9.00 N	-4X	Serrated - C
P201/G-CL2-2	1.80 mm	3.50 N	-2	Serrated - C
P201/G-CL2-1	1.80 mm	2.30 N	-1	Serrated - C
P201/G-CL8-4X	1.00 mm	9.00 N	-4X	Serrated - C
P201/G-CL8-2	1.00 mm	3.50 N	-2	Serrated - C
P201/G-CL8-1	1.00 mm	2.30 N	-1	Serrated - C
P201/G-AL1-1	3.00 mm	2.30 N	-1	Concave - A
P201/G-AL-1	2.30 mm	2.30 N	-1	Concave - A
