P15/G Probe Series

Screw in (threaded) test probe series. Mainly used for automotive testing and cable harnessing.

Request for quote

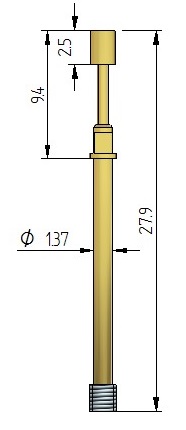

P15G

Product specification
Mil
100
Centres
2.54 mm
Full Travel
4.40 mm
Working Travel
3.50 mm
Current Resistance
5.00 amps
Continuity Resistance
20.00 mOhms
Product Series
P15/G
Application
Screw In
Solutions
Wire Harness Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberHead DiameterWorking Travel Spring ForceSpring PartHead StyleQuantity
P15/G-C1.INS-2
1.20 mm
3.00 N
-2
Insulated Serrated - C.INS
P15/G-D1-0
0.75 mm
0.70 N
-0
Headless Dome - D
P15/G-D1-1X
0.75 mm
1.00 N
-1X
Headless Dome - D
P15/G-D1-1
0.75 mm
1.50 N
-1
Headless Dome - D
P15/G-C1.INS-2X
1.20 mm
2.50 N
-2X
Insulated Serrated - C.INS
P15/G-C1.INS-1
1.20 mm
1.50 N
-1
Insulated Serrated - C.INS
P15/G-C.INS-1
1.37 mm
1.50 N
-1
Insulated Serrated - C.INS
P15/G-C.INS-2X
1.37 mm
2.50 N
-2X
Insulated Serrated - C.INS
P15/G-C.INS-2
1.37 mm
3.00 N
-2
Insulated Serrated - C.INS
P15/G-C1.INS-1X
1.20 mm
1.00 N
-1X
Insulated Serrated - C.INS
P15/G-C1.INS-0
1.20 mm
0.70 N
-0
Insulated Serrated - C.INS
P15/G-D1-2X
0.75 mm
2.50 N
-2X
Headless Dome - D
P15/G-D1-2
0.75 mm
3.00 N
-2
Headless Dome - D
P15/G-D4-1
1.25 mm
1.50 N
-1
Dome - D
P15/G-D4-2X
1.25 mm
2.50 N
-2X
Dome - D
P15/G-D4-2
1.25 mm
3.00 N
-2
Dome - D
P15/G-D60-0
0.61 mm
0.70 N
-0
Headless Dome - D
P15/G-D4-1X
1.25 mm
1.00 N
-1X
Dome - D
P15/G-D4-0
1.25 mm
0.70 N
-0
Dome - D
P15/G-D3-0
0.65 mm
0.70 N
-0
Reduced Dome - D
P15/G-D3-1X
0.65 mm
1.00 N
-1X
Reduced Dome - D
P15/G-D3-1
0.65 mm
1.50 N
-1
Reduced Dome - D
P15/G-D3-2
0.65 mm
3.00 N
-2
Reduced Dome - D
P15/G-D3-2X
0.65 mm
2.50 N
-2X
Reduced Dome - D
P15/G-C.INS-1X
1.37 mm
1.00 N
-1X
Insulated Serrated - C.INS
P15/G-C.INS-0
1.37 mm
0.70 N
-0
Insulated Serrated - C.INS
P15/G-B-1
0.75 mm
1.50 N
-1
Spear - B
P15/G-B-2X
0.75 mm
2.50 N
-2X
Spear - B
P15/G-B-2
0.75 mm
3.00 N
-2
Spear - B
P15/G-C-0
1.80 mm
0.70 N
-0
Serrated - C
P15/G-B-1X
0.75 mm
1.00 N
-1X
Spear - B
P15/G-B-0
0.75 mm
0.70 N
-0
Spear - B
P15/G-A-0
1.80 mm
0.70 N
-0
Concave - A
P15/G-A-1X
1.80 mm
1.00 N
-1X
Concave - A
P15/G-A-1
1.80 mm
1.50 N
-1
Concave - A
P15/G-A-2
1.80 mm
3.00 N
-2
Concave - A
P15/G-A-2X
1.80 mm
2.50 N
-2X
Concave - A
P15/G-C-1X
1.80 mm
1.00 N
-1X
Serrated - C
P15/G-C-1
1.80 mm
1.50 N
-1
Serrated - C
P15/G-C2-0
1.00 mm
0.70 N
-0
Serrated - C
P15/G-C2-1X
1.00 mm
1.00 N
-1X
Serrated - C
P15/G-C2-1
1.00 mm
1.50 N
-1
Serrated - C
P15/G-C2-2
1.00 mm
3.00 N
-2
Serrated - C
P15/G-C2-2X
1.00 mm
2.50 N
-2X
Serrated - C
P15/G-C1-2
1.30 mm
3.00 N
-2
Serrated - C
P15/G-C1-2X
1.30 mm
2.50 N
-2X
Serrated - C
P15/G-C-2X
1.80 mm
2.50 N
-2X
Serrated - C
P15/G-C-2
1.80 mm
3.00 N
-2
Serrated - C
P15/G-C1-0
1.30 mm
0.70 N
-0
Serrated - C
P15/G-C1-1
1.30 mm
1.50 N
-1
Serrated - C
P15/G-C1-1X
1.30 mm
1.00 N
-1X
Serrated - C
P15/G-D60-1X
0.61 mm
1.00 N
-1X
Headless Dome - D
P15/G-D60-1
0.61 mm
1.50 N
-1
Headless Dome - D
P15/G-D60-2X
0.61 mm
2.50 N
-2X
Headless Dome - D
P15/G-Q1-2
1.30 mm
3.00 N
-2
4 Point Crown - Q
P15/G-Q1-2X
1.30 mm
2.50 N
-2X
4 Point Crown - Q
P15/G-Q1-1
1.30 mm
1.50 N
-1
4 Point Crown - Q
P15/G-Q1-1X
1.30 mm
1.00 N
-1X
4 Point Crown - Q
P15/G-Q1-0
1.30 mm
0.70 N
-0
4 Point Crown - Q
P15/G-Q-2
1.80 mm
3.00 N
-2
4 Point Crown - Q
P15/G-Q-1
1.80 mm
1.50 N
-1
4 Point Crown - Q
P15/G-Q-2X
1.80 mm
2.50 N
-2X
4 Point Crown - Q
P15/G-Q-1X
1.80 mm
1.00 N
-1X
4 Point Crown - Q
P15/G-K-2
1.80 mm
3.00 N
-2
Star - K
P15/G-Q-0
1.80 mm
0.70 N
-0
4 Point Crown - Q
P15/G-K-2X
1.80 mm
2.50 N
-2X
Star - K
P15/G-K-1
1.80 mm
1.50 N
-1
Star - K
P15/G-K-1X
1.80 mm
1.00 N
-1X
Star - K
P15/G-K-0
1.80 mm
0.70 N
-0
Star - K
P15/G-H2-2
1.80 mm
3.00 N
-2
Chisel - H
P15/G-H2-2X
1.80 mm
2.50 N
-2X
Chisel - H
P15/G-H2-1
1.80 mm
1.50 N
-1
Chisel - H
P15/G-H2-1X
1.80 mm
1.00 N
-1X
Chisel - H
P15/G-H-2
1.30 mm
3.00 N
-2
Chisel - H
P15/G-H2-0
1.80 mm
0.70 N
-0
Chisel - H
P15/G-H-2X
1.30 mm
2.50 N
-2X
Chisel - H
P15/G-H-1X
1.30 mm
1.00 N
-1X
Chisel - H
P15/G-H-1
1.30 mm
1.50 N
-1
Chisel - H
P15/G-H-0
1.30 mm
0.70 N
-0
Chisel - H
P15/G-F3-2
0.75 mm
3.00 N
-2
Headless Flat - F
P15/G-F3-1
0.75 mm
1.50 N
-1
Headless Flat - F
P15/G-F3-2X
0.75 mm
2.50 N
-2X
Headless Flat - F
P15/G-F3-1X
0.75 mm
1.00 N
-1X
Headless Flat - F
P15/G-F3-0
0.75 mm
0.70 N
-0
Headless Flat - F
P15/G-F1-2X
1.50 mm
2.50 N
-2X
Flat - F
P15/G-F1-1
1.50 mm
1.50 N
-1
Flat
P15/G-F1-0
1.50 mm
0.70 N
-0
Flat
P15/G-F1-1X
1.50 mm
1.00 N
-1X
Flat - F
P15/G-F-2
1.80 mm
3.00 N
-2
Flat - F
P15/G-F-1
1.80 mm
1.50 N
-1
Flat - F
P15/G-F-2X
1.80 mm
2.50 N
-2X
Flat - F
P15/G-F1-2
1.50 mm
3.00 N
-2
Flat - F
P15/G-F-1X
1.80 mm
1.00 N
-1X
Flat - F
P15/G-E-0
1.80 mm
0.70 N
-0
Cone - E
P15/G-E-2
1.80 mm
3.00 N
-2
Cone - E
P15/G-E-2X
1.80 mm
2.50 N
-2X
Cone - E
P15/G-E-1X
1.80 mm
1.00 N
-1X
Cone - E
P15/G-E-1
1.80 mm
1.50 N
-1
Cone - E
P15/G-D8-2
0.50 mm
3.00 N
-2
Reduced Dome - D
P15/G-D60-2
0.61 mm
3.00 N
-2
Headless Dome - D
P15/G-F-0
1.80 mm
0.70 N
-0
Flat - F
P15/G-D8-1
0.50 mm
1.50 N
-1
Reduced Dome - D
P15/-D8-2X
0.50 mm
2.50 N
-2X
Reduced Dome - D
P15/G-D8-0
0.50 mm
0.70 N
-0
Reduced Dome - D
P15/G-D8-1X
0.50 mm
1.00 N
-1X
Reduced Dome - D
