Probe

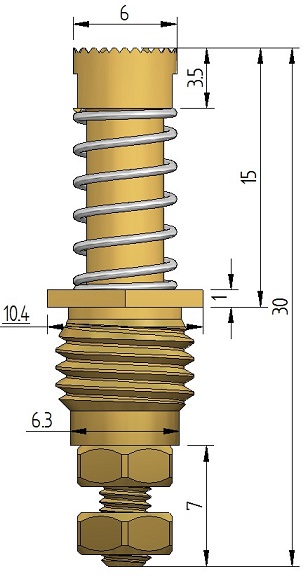

HSP865 High Current Probe Series
A robust small high current screw-in (threaded) probe with a continous plunger.
Max current is 50 amps. Large serrated head style available
Product specification
| Mil | 433 |
| Centres | 11.00 mm |
| Full Travel | 7.00 mm |
| Working Travel | 5.00 mm |
| Current Resistance | 50.00 amps |
| Continuity Resistance | 6.00 mOhms |
| Product Series | HSP865 |
| Application | High Current Screw In |
| Solutions | Battery & High Current Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
