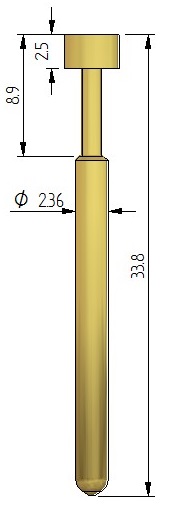

HSP54 High Current Probe Series

High current ATE push fit test probe.

This probe is compatible with standard R54 receptacles.

Please see series P54 for a standard current version.

Request for quote
HSP54

Product specification
Mil
187
Centres
4.75 mm
Full Travel
6.35 mm
Working Travel
4.32 mm
Current Resistance
15.00 amps
Continuity Resistance
50.00 mOhms
Product Series
HSP54
Application
High Current
Solutions
Battery & High Current Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberHead DiameterWorking Travel Spring ForceHead StyleQuantity
HSP54-H
2.54 mm
3.00 N
Chisel - H
HSP54-F
3.96 mm
3.00 N
Flat - F
HSP54-D
3.96 mm
3.00 N
Dome - D
HSP54-C
3.96 mm
3.00 N
Serrated - C
HSP54-A
3.96 mm
3.00 N
Concave - A
HSP54-BR
2.00 mm
3.00 N
Bullet nose - BR
HSP54-C2
2.54 mm
3.00 N
Serrated - C
HSP54-D2
2.54 mm
3.00 N
Dome - D
HSP54-Q2
2.54 mm
3.00 N
4 Point Crown - Q
HSP54-Q
3.96 mm
3.00 N
4 Point Crown - Q
