R25 Receptacle Series

Receptacles which are compatible with various standard probe series.

Please view different variations below. Click each image to zoom.

Also referred to as 'sleeves' and 'housing units'.

PLEASE CONTACT US FOR RECOMMENDED DRILLING DIAMETERS.

Receptacle Category

Crimp Receptacle

Round Post Receptacle

Solder Receptacle

Wire Wrap Receptacle

Image	Part Number	Description

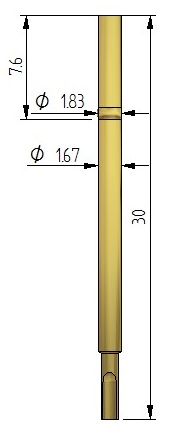

Image	R25-S	Solder Receptacle - 7.6mm collar height

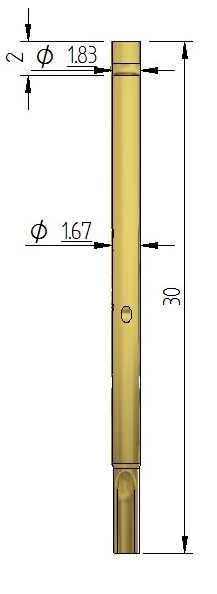

Image	R25-S-2	Solder Receptacle - 2mm collar height

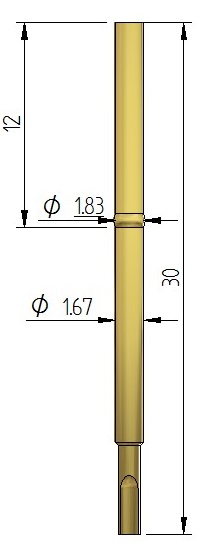

Image	R25-S-12	Solder Receptacle - 12mm collar height

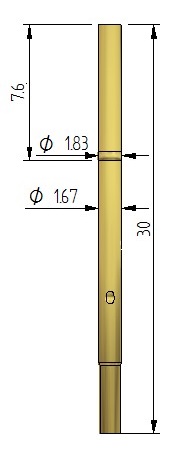

Image	R25-C	Crimp Receptacle - 7.6mm collar height

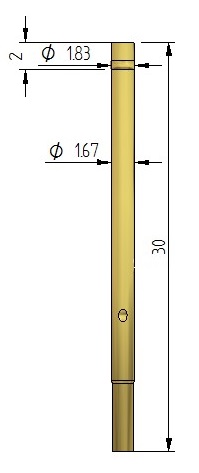

Image	R25-C-2	Crimp Receptacle - 2mm collar height

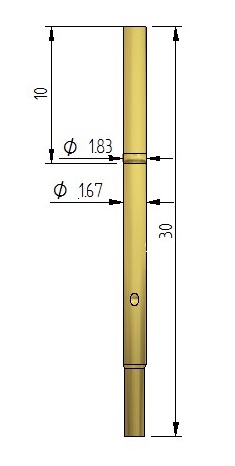

Image	R25-C-10	Crimp Receptacle - 10mm collar height

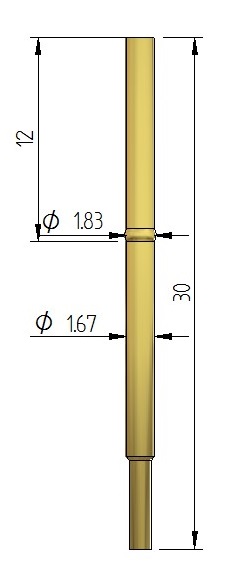

Image	R25-C-12	Crimp Receptacle - 12mm collar height

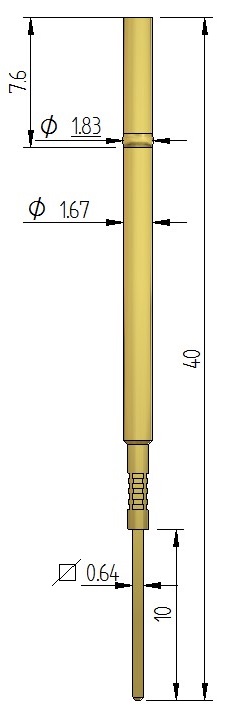

Image	R25-W	Wire Wrap Receptacle - 7.6mm collar height

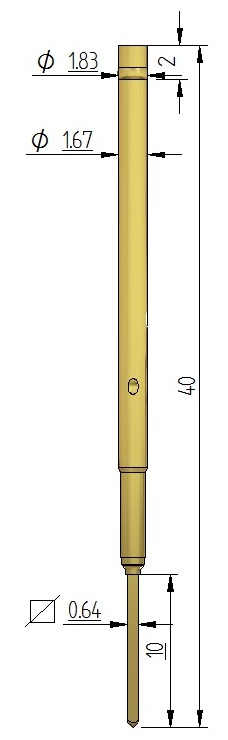

Image	R25-W-2	Wire Wrap Receptacle - 2mm collar height

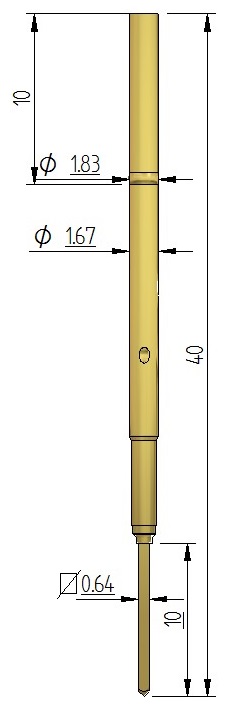

Image	R25-W-10	Wire Wrap Receptacle - 10mm collar height

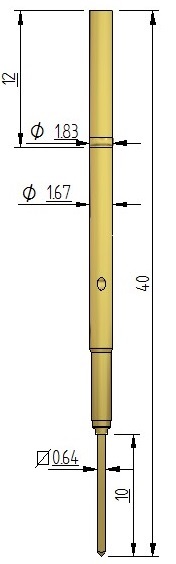

Image	R25-W-12	Wire Wrap Receptacle - 12mm collar height

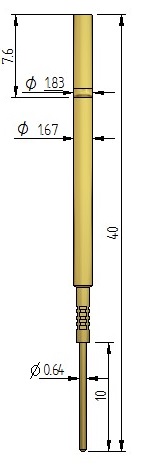

Image	R25-P	Round Post Receptacle - 7.6mm collar height
