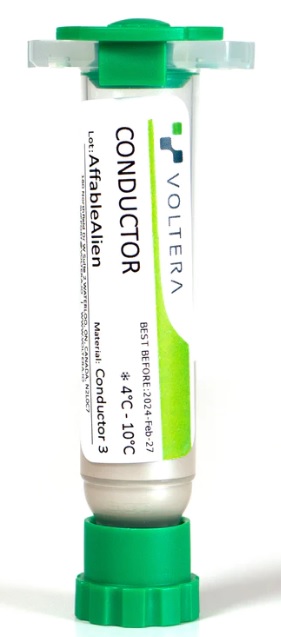

FLEX 3 Conductive Ink Cartridge

The Conductor 3 ink is optimized for printing both rigid and flexible circuits. The printer lays down silver conductive ink to make the traces and pads that comprise your circuit board. After thermal curing, the ink is conductive and ready for reflow.

Specifications:
Recommended curing temperature is 90°C for 5 minutes, then 120°C for 20 minutes (temperature measured at ink surface).

Compatible with FR1, FR4, and flexible substrates.

For best results, cure immediately after printing.

Solder with tin-bismuth-silver solder wire and flux at 180°C, or use preset profile for reflow soldering.

Cartridges must be kept refrigerated, and have a shelf life of 12 months.

Request for quote
1000681

Product specification
Solutions
PCB Printing

Request for quote
Part NumberDescriptionVoltera TypeQuantity
1000681*
FLEX 3 Conductive Ink Cartridge 1 x 2mL cartridge
The second generation flexible conductive ink allows for higher conductivity, better printing resolution, improved bending performance, and more robust soldering - all the ingredients required to print your own flexible circuits.

Compatible with PET, polyimide, and other flexible polymer substrates. Recommended curing temperature 160C for 30 minutes (measured at ink surface). Cure immediately after printing for best flexibility

Solder with Tin-Bismuth-Silver solder wire and flux at 180C, or preset profile for reflow soldering.

Cartridges should be kept refrigerated.
